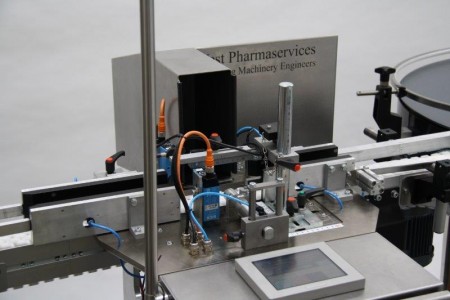

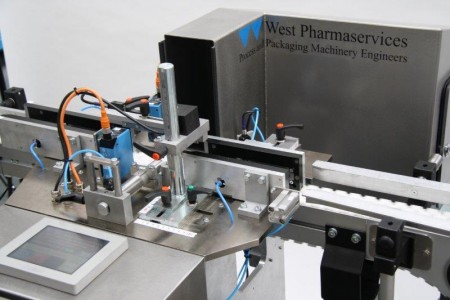

Key features of the WEST LRS 50:
- Label detection unit with reject facility.
- Can be fitted into an existing line to reject bottles with missing labels.
- The machine has been designed to accommodate a range of bottle sizes
- The label rejection unit has been designed to Pharmaceutical standards, comply with cGMP requirements and comply with the European Falsified Medicines Directive (2011/62/EU).
- All non-product contact parts are made from 303/304/316 grade stainless steel.
- All plastic materials used in the machines construction are FDA approved.
- The unit is fully CE marked.
- The electrical systems is designed as fail safe and for a safe re-start following power failure.
- The system is manufactured to be easily cleanable and that there are no areas where product debris can collect.
- The system is manufactured to facilitate easy line clearance.
- The system has been manufactured to allow quick change over of product size.
- Standard electric power supply – 240 V 50Hz
- Installed power – 13 amp 1 phase power supply required
- Compressed air pressure 6 Bar Max
- Compressed air consumption 5 Nlt/h
- Net Weight 35 kg
- Reject bin
- No change parts required
- Pro-face HMI and WAGO PLC
- Can be installed over any existing conveyor system.
Please contact us for more information.
